Ultra High Pressure 6,000 PSIG Stainless Steel Process Housings
Our 150VP and 160VP series of ultra high-pressure 316L stainless steel filter housings deliver exceptional performance and value in the most demanding applications.
| PRODUCT FEATURES / BENEFITS |
| s 316L Stainless Steel Construction |
| s 6,000 PSIG / 400°F – Standard |
| s Flanges Available |
| s 3-Port Housings for Coalescing |
| s Particulate and Bypass Filtration |
| s Ultra High Pressure Gas Systems |
| s Booster Compressors |
| s Mechanical Seal Filter |
| s Critical Process Filtration |
Description
Our 150VP and 160VP series of ultra high-pressure 316L stainless steel filter housings deliver exceptional performance and value in the most demanding applications. The precision-machined, threaded head-to-bowl connection with a captured O-ring ensures a positive, leak-free seal—even in highly corrosive environments. With a pressure rating of 6,000 PSIG, these housings are ideal for a broad range of gas and liquid filtration applications.
The VP Series versions of our 150 and 160 housings are built to order, allowing us to tailor each unit to your exact specifications. Custom options include differential pressure port taps, vent ports, specific face-to-face dimensions, and flange configurations. We can even manufacture a fully machined filter head with integral flanges for specialized installations.
To meet the diverse requirements of process and sample filtration, we offer a complete line of compatible filter elements in stainless steel, polypropylene, and other corrosion-resistant materials. High-efficiency borosilicate microfiber elements, chemically inert to most liquids and gases, are also available for critical applications.
Quick Comparison

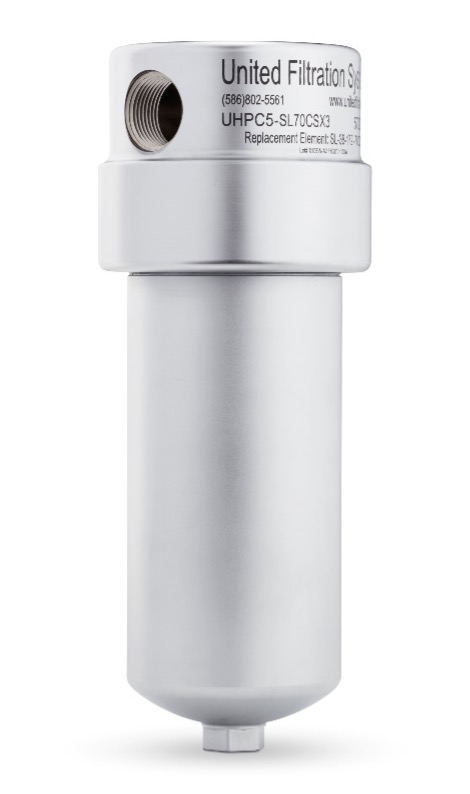

| Ultra High Pressure 6,000 PSIG Stainless Steel Process Housings remove | PTFE Filter Housings remove | Fast Loop Filters (All Models) remove | Mini SS 5000 PSIG Housings remove | Multi-Port Filter Housings remove | High Pressure Compressed Gas Filter remove | |
|---|---|---|---|---|---|---|
| Name | Ultra High Pressure 6,000 PSIG Stainless Steel Process Housings remove | PTFE Filter Housings remove | Fast Loop Filters (All Models) remove | Mini SS 5000 PSIG Housings remove | Multi-Port Filter Housings remove | High Pressure Compressed Gas Filter remove |
| Image | |  |  |  |  |  |
| SKU | ||||||
| Rating | ||||||
| Price | ||||||
| Stock | ||||||
| Weight | N/A | N/A | N/A | N/A | N/A | N/A |
| Dimensions | N/A | N/A | N/A | N/A | N/A | N/A |
| Additional information | ||||||

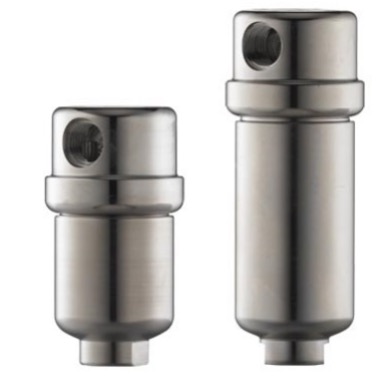

| Description | Our 150VP and 160VP series of ultra high-pressure 316L stainless steel filter housings deliver exceptional performance and value in the most demanding applications. | PTFE filter housings are engineered specifically for applications requiring exceptional chemical resistance and minimal adsorption. These housings support a range of filter elements for both gaseous and liquid filtration. | Fast Loop Filters are engineered to minimize the time delay commonly associated with online analyzer sample systems. Unlike traditional three-port T-type designs, our Fast Loop configurations continuously flush the filter element of heavy contaminants while filtering only the sample stream. This design significantly reduces lag time and extends filter element life. | The 110 and 120 Series Filter Housings are designed for use with both gaseous and liquid sample process analyzers. Their compact configuration, low internal volume, and positive O-ring sealing mechanism provide reliable performance in demanding analyzer applications. All wetted components are constructed from 316L stainless steel and are weld-free to ensure compliance with NACE MR-01-75 standards. | The 120B / 122B Series filters are designed for gaseous and liquid sample process analyzers. | The UHPC-SL Filter Series is engineered specifically for high-pressure compressed gas coalescing filtration. Each housing is rated to 5,700 PSIG and manufactured in accordance with ASME B31.3 specifications, ensuring reliable performance under demanding operating conditions. |
