Analyzer Panel Filter (Model 170)
The 170 Series offers a compact and versatile solution for modern sample conditioning systems. Designed for inverted (upside-down) or horizontal installation, all connections—including inlet, outlet, drain, and bypass—are located in the head, allowing element servicing without breaking any connections.
| PRODUCT FEATURES / BENEFITS |
| s Compact Footprint Provides Versatile Installation |
| s Break No Connections When Servicing Filter Element |
| s Low Internal Volume for Quick Response Time |
| s Hollow Tie Rod Provides Added Protection to Carry-Over During System Start-Ups |
| s Ideal for Compact Analyzer Cabinets |
| s Pre-Filter for Guardian Membranes |
| s Multi-Port Analyzers |
Description
The 170 Series offers a compact and versatile solution for modern sample conditioning systems. Designed for inverted (upside-down) or horizontal installation, all connections—including inlet, outlet, drain, and bypass—are located in the head, allowing element servicing without breaking any connections.
A key feature of this design is the hollow tie rod on the outlet side, which directs the filtered stream to the highest point within the vessel. This reduces liquid and solid carryover during system start-ups or upset conditions. A wide variety of filter elements and materials are available to meet specific process requirements.
Quick Comparison

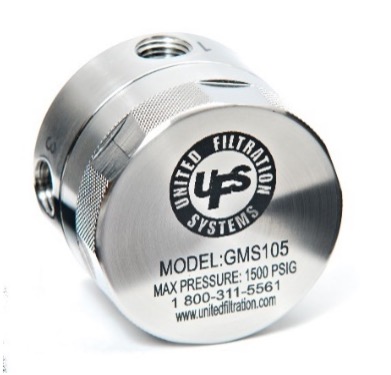

| Analyzer Panel Filter (Model 170) remove | Stand-Alone Membrane Separators remove | Mini SS 5000 PSIG Housings remove | Fast Loop Filters (All Models) remove | High Pressure Mid-Size Stainless Steel 3,000 PSIG Housings remove | Stainless Steel Process Housings remove | |
|---|---|---|---|---|---|---|
| Name | Analyzer Panel Filter (Model 170) remove | Stand-Alone Membrane Separators remove | Mini SS 5000 PSIG Housings remove | Fast Loop Filters (All Models) remove | High Pressure Mid-Size Stainless Steel 3,000 PSIG Housings remove | Stainless Steel Process Housings remove |
| Image | |  |  |  |  |  |
| SKU | ||||||
| Rating | ||||||
| Price | ||||||
| Stock | ||||||
| Weight | N/A | N/A | N/A | N/A | N/A | N/A |
| Dimensions | N/A | N/A | N/A | N/A | N/A | N/A |
| Additional information | ||||||
| Description | The 170 Series offers a compact and versatile solution for modern sample conditioning systems. Designed for inverted (upside-down) or horizontal installation, all connections—including inlet, outlet, drain, and bypass—are located in the head, allowing element servicing without breaking any connections. | The Guardian Membrane Series is engineered to provide complete removal of entrained liquids and solids from gas samples assuring sample integrity and protecting downstream analyzers. | The 110 and 120 Series Filter Housings are designed for use with both gaseous and liquid sample process analyzers. Their compact configuration, low internal volume, and positive O-ring sealing mechanism provide reliable performance in demanding analyzer applications. All wetted components are constructed from 316L stainless steel and are weld-free to ensure compliance with NACE MR-01-75 standards. | Fast Loop Filters are engineered to minimize the time delay commonly associated with online analyzer sample systems. Unlike traditional three-port T-type designs, our Fast Loop configurations continuously flush the filter element of heavy contaminants while filtering only the sample stream. This design significantly reduces lag time and extends filter element life. | The 130HP and 140HP Series Filters feature a rugged, yet straightforward design, making them an excellent choice for CNG applications and other high-pressure systems. T | Our Gas and Liquid Process Filters protect equipment from sample impurities by removing solids and liquids with up to 99.999% efficiency at 0.01 micron. This series is also suitable for liquid sample process applications when used with pleated liquid elements or stainless steel elements, achieving efficiencies as fine as 1 micron in liquids. |
