Brass Filter Housings
For air service, Headline Filters brass filter housings are precision-machined from solid brass bar stock, with durable nylon internals and a Viton seal. They are ideal for point-of-use instrument air filtration and are available in the B360 series, which comes equipped with our high-flow 80C grade coalescing filter element. This element is engineered for heavily saturated air systems, efficiently removing large volumes of liquid while providing long service life for particulate filtration.
Notice: Trying to get property 'ID' of non-object in C:\sites\ufs\wp-content\themes\automize\woocommerce\single-product\ask-question.php on line 28
Notice: Trying to get property 'post_title' of non-object in C:\sites\ufs\wp-content\themes\automize\woocommerce\single-product\ask-question.php on line 28
Error: Contact form not found.
| PRODUCT FEATURES / BENEFITS |
| s Brass with Nylon Internals for Air Service |
| s One Piece Bowl for Easy Service |
| s 500 PSIG Rated – Higher Pressures Available |
| s Off-Shore Instrumentation Service |
| s Oxygen Service – All Brass with Bronze Element |
| s All Brass Internals with “OS” Models |
Description
For air service, Headline Filters brass filter housings are precision-machined from solid brass bar stock, with durable nylon internals and a Viton seal. They are ideal for point-of-use instrument air filtration and are available in the B360 series, which comes equipped with our high-flow 80C grade coalescing filter element. This element is engineered for heavily saturated air systems, efficiently removing large volumes of liquid while providing long service life for particulate filtration.
For oxygen service or enhanced chemical compatibility, we recommend our OS series, which replaces nylon internals with brass. When ordered for oxygen service, housings must be properly cleaned to remove hazardous grease and contaminants. We offer this service upon request by specifying “oxygen cleaning” at the time of order. This process is performed in accordance with ASTM G93, ensuring housings are free of harmful residues and reassembled using Krytox 205 lubricant for safe, reliable performance.
Our T-Type filters are ideal for oxygen. They capture contaminants to ensure a clean system and help prevent oxygen fire ignition. This design also provides easy element replacement without disconnecting the filter housing.
We offer No Drain Port options for one less leak point, designated with an “ND” suffix. Example: B365ND-OS.
For oxygen service we offer oxygen compatible sintered Bronze element.
Sintered bronze filter elements are particularly well suited for oxygen service because bronze exhibits greater resistance to ignition than metals such as aluminum or stainless steel. Manufactured from spherical bronze powder, these elements provide effective contamination control while maintaining ignition resistance, making them a safe and dependable choice for gaseous and breathing air systems.
The porous metal construction gives these elements exceptional mechanical strength while forming a capillary-like network of interconnecting pores throughout the structure. This unique design enables both surface and depth filtration performance with high strength and consistent porosity.
Quick Comparison

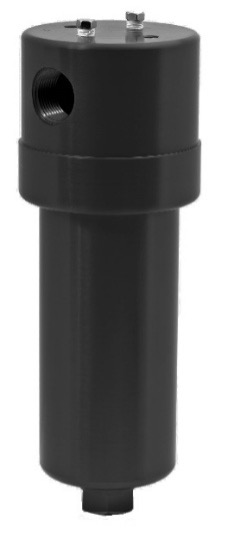

| Brass Filter Housings remove | Exotic Material Filters remove | Kynar Filter Housings remove | Compressed Air & Gas Assemblies (0.75 - 1 inch) remove | Nylon Filter Housings remove | Polypropylene / Polycarbonate Filters remove | |
|---|---|---|---|---|---|---|
| Name | Brass Filter Housings remove | Exotic Material Filters remove | Kynar Filter Housings remove | Compressed Air & Gas Assemblies (0.75 - 1 inch) remove | Nylon Filter Housings remove | Polypropylene / Polycarbonate Filters remove |
| Image | |  |  |  |  |  |
| SKU | ||||||
| Rating | ||||||
| Price | ||||||
| Stock | ||||||
| Weight | N/A | N/A | N/A | N/A | N/A | N/A |
| Dimensions | N/A | N/A | N/A | N/A | N/A | N/A |
| Additional information | ||||||
| Description | For air service, Headline Filters brass filter housings are precision-machined from solid brass bar stock, with durable nylon internals and a Viton seal. They are ideal for point-of-use instrument air filtration and are available in the B360 series, which comes equipped with our high-flow 80C grade coalescing filter element. This element is engineered for heavily saturated air systems, efficiently removing large volumes of liquid while providing long service life for particulate filtration. | Our Extensive Material Capabilities for Custom Filtration Solutions United offers a comprehensive library of exotic materials designed to meet the demands of specialized filtration applications. Our capabilities include the fabrication of custom filter housings and elements from a wide range of metals tailored to suit diverse operating environments. | PVDF (Kynar) Housings offers an economical solution for corrosive applications. Constructed entirely of Kynar, these housings are highly resistant to chemical attack and are suitable for a broad range of liquid and gas filtration applications. | Our 380AHP Series delivers high-efficiency filtration in a robust, service-friendly package. Each housing is 100% machined, fully anodized, and designed for easy maintenance with a large hex base, one-piece bowl, and captured O-ring. The standard model is rated to 1500 PSIG, making it ideal for CNG, fuel gas, and compression service. | Nylon Housings provides an economical solution for both sample systems and low-pressure compressed air applications. | Polypropylene housings with transparent polycarbonate bowls provide an economical solution for low-pressure applications where chemical resistance is adequate. The clear bowl makes it easy to visually monitor element condition. |
