| Model Number | FD130-4274 |
|---|---|
| Port Size (NPT) | 1/4" |
| Maximum Operating Pressure (psig) | 250 |
| Maximum Body Pressure (psig) | 250 |
| Maximum Temperature (ºF) | 120 |

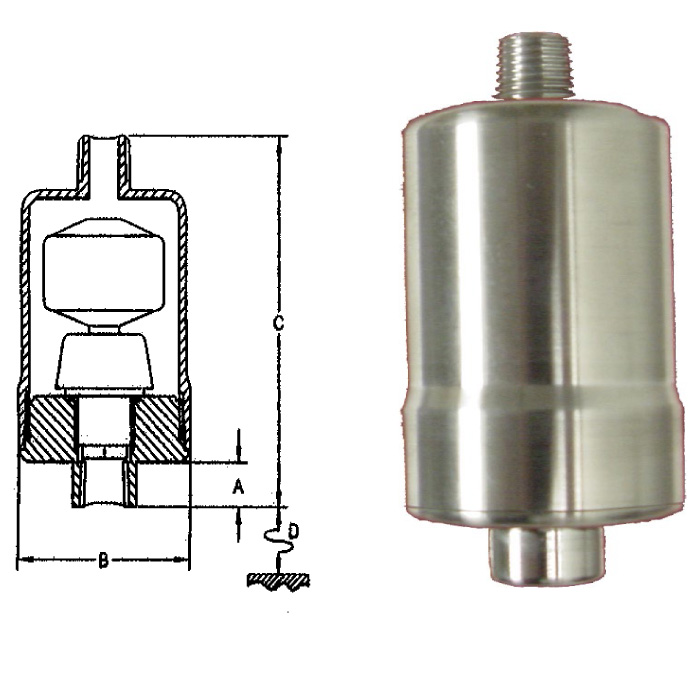

| Principle Dimensions: (inches) | |
| Center of Port to Head | 0.39 |
| Head Diameter | 1.81 |
| Overall Length | 3.54 |
| Materials of Construction: | |
| Head & Base | 316L Stainless Steel |
| Internals | Nylon / Brass |
| Bowl | 316L Stainless Steel |
| Seals | Viton |
| Accessories: | |
| Seal Set | GVFD130 |
Features
- 250 Maximum Operating PSIG
- Compact, Rugged Design
- Stainless Steel Body - Nylon Internals
- For Use with Compressed Air or Non-Corrosive Gases
Applications
- For Corrosive Environments
- To Use with Stainless Steel Housings
- Drain Remote Filter Housings, Automatically
The FD130-4274 automatic float drain is used in positive pressure systems to remove large quantities of liquid. The drain is added to the drain port of a filter housing fitted with a coalescing filter element. The liquid drains from the housing into the automatic float drain and collects in the bottom. As the level of the liquid rises, the float will open a valve, and the liquid drains out. The FD130-4274 automatic drain is suitable for use in systems with a positive pressure between 15 PSIG and 250 PSIG.
