Features
- Rugged, 100% Machined Anodized Aluminum Construction
- Remove 99.99% of Oil, Water & Solids From Compressed Air & Other Gases
- High Efficiency Microfiber Elements
- Capture Dirt, Coalesce Liquids
- Coalescing and Pleated Glass Particulate Filter Elements Available
Applications
- Air Dryer Protection
- Food Processing Systems
- CNG Filtration
- Instrument Air

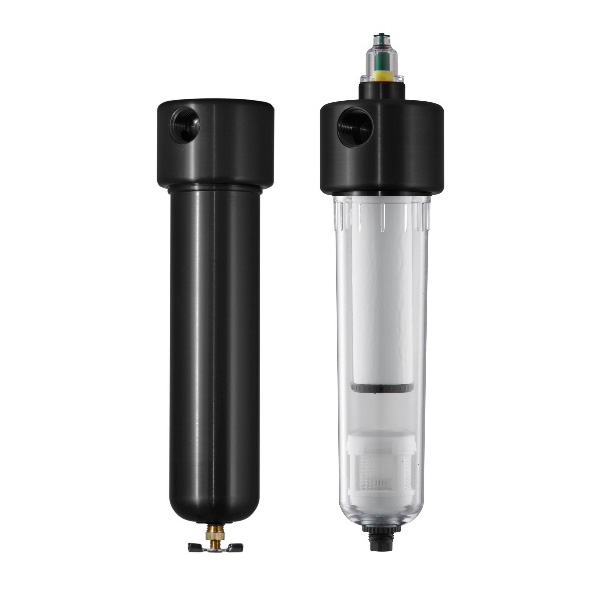

The 370 series of coalescing filters have increased liquid holding capacity and are available with optional high-volume automatic float drains (with function above 12 psi), and differential pressure indicators which are sensitive in the 2 to 16 psi differential. The all aluminum assemblies rated at 500 PSIG are ideal as CNG Fuel Gas filters.
Product Bulletin DownloadAdditional information
| Connection Size | 1/2" NPT, 1/4" NPT |
|---|---|
| Drain Type | Automatic, Petcock, Twist |
| Maximum PSIG | 150, 250, 500 |
| Element Size | 25-127, 25-178 |
| Housing Material | Anodized Aluminum, Anodized Aluminum / Polycarbonate |
