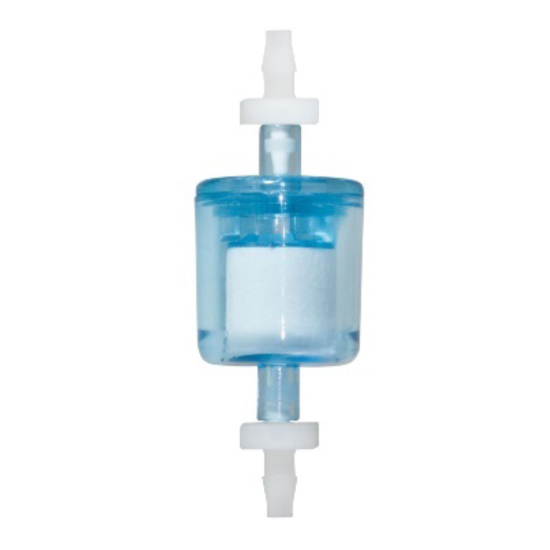

Our mini DIF was designed specifically as a final last chance filter for critical equipment with a small footprint and 1/8”ID tubing. They are ideally used for HVAC/Pneumatic temperature control protection.
Standard: DIF-MN50-1/8” (99.99% @ 0.01 Micron) – Other Grades Available: 30, 40, 60, 70, 80
Technical Information

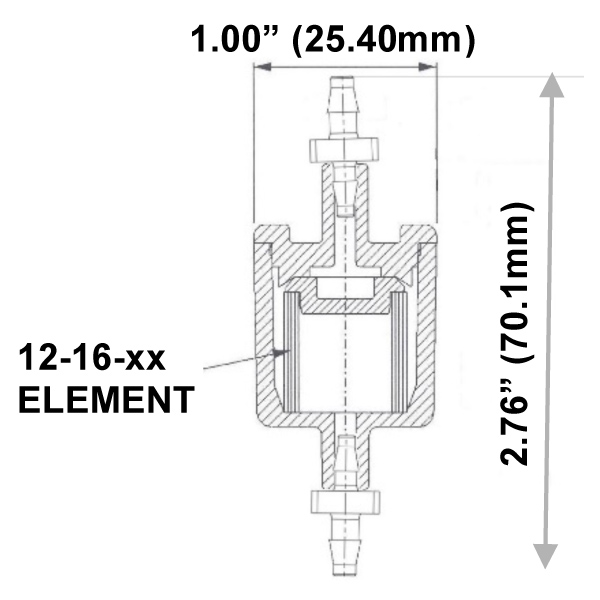

- 1/8" Tubing Connection on Inlet / Outlet
- 6cc of Volume
- 230ºF Maximum Temp. At 0 PSIG
- 125 PSIG of Maximum Pressure at 110ºF
- Material:
- Body - 100% Grilamid TR 55 Blue Nylon
- Straight Barb - White Nylon
- Fluorocarbon Borosilicate Glass Microfiber Element
- Standard Gas Flow at 100 PSIG is 2.1 SCFM
