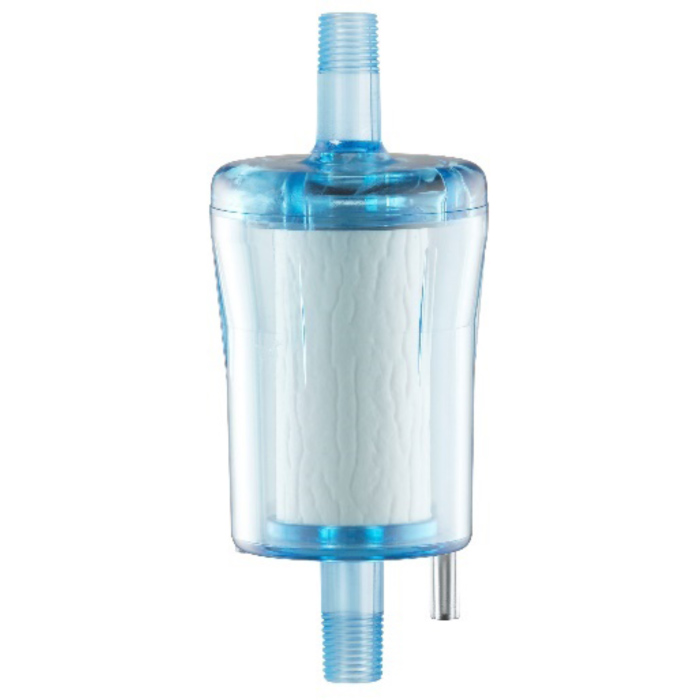

Description
Our large DIF with 3rd spigot is utilized when coalescing (liquid removal) is required.
Standard Grade: DIF-LN60C (99.5% @ 0.01 Micron) Other Grades Available: 30, 40, 50, 70, 80
Technical Information
- 1/4" NPT Inlet / Outlet or 1/2" Slip On Connection
- 1/4" Drain Port
- 120cc of Volume
- 230ºF Maximum Temp. At 0 PSIG
- 100 PSIG of Maximum Pressure at 110ºF
- 100% Grilamid TR 55 Blue Nylon body
- Fluorocarbon Borosilicate Glass Microfiber Element
- Standard Gas Flow at 100 PSIG is 17.0 SCFM
Additional information
| Type of Filtration | Disposable In-Line |
|---|---|
| Connection Size | N/A |
| Drain Type | 1/2" Tube, 1/4" MNPT |
| Maximum PSIG | 100 |
| Element Size | 25-64-30, 25-64-40, 25-64-50, 25-64-60, 25-64-70, 25-64-80 |
| Housing Material | Blue Transparent Nylon |
