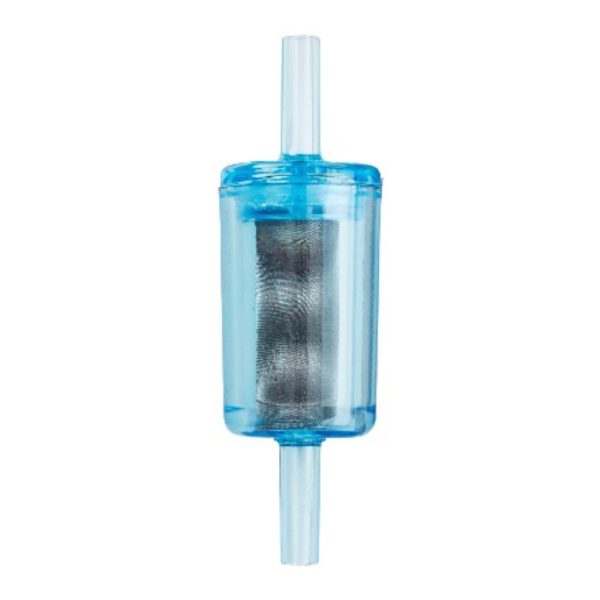

For applications where high efficiency microfiber elements are not necessary, we offer inexpensive Stainless Steel Screens which are commonly used in portable emission analyzers, bulk contaminate removal and liquid sampling.
For Portable Emission Analyzers use DIF-BN50SS. Other Micron Sizes Available: 05, 10, 25, 100

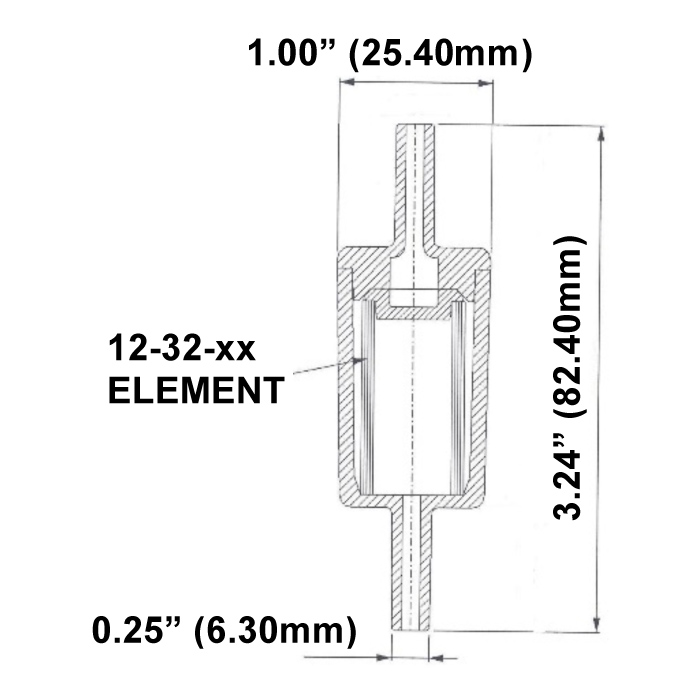

Technical Information
- 1/4" Inlet / Outlet
- 11.5cc of Volume
- 230ºF Maximum Temp. At 0 PSIG
- 125 PSIG of Maximum Pressure at 110ºF
- 100% Grilamid TR 55 Blue Nylon body
- 304 Stainless Steel Screen Element
- Standard Gas Flow at 100 PSIG is 4.2 SCFM
