The DIA-MN, mini DIA was designed specifically as a final last chance adsorber for critical equipment with a small footprint. They are ideally used for HVAC / Pneumatic temperature control protection.
Replace “xx” with grade required CC, 4A, 13X, SG, DR, MB, PP, HO, SB, CS, e.g. DIA-MNCC

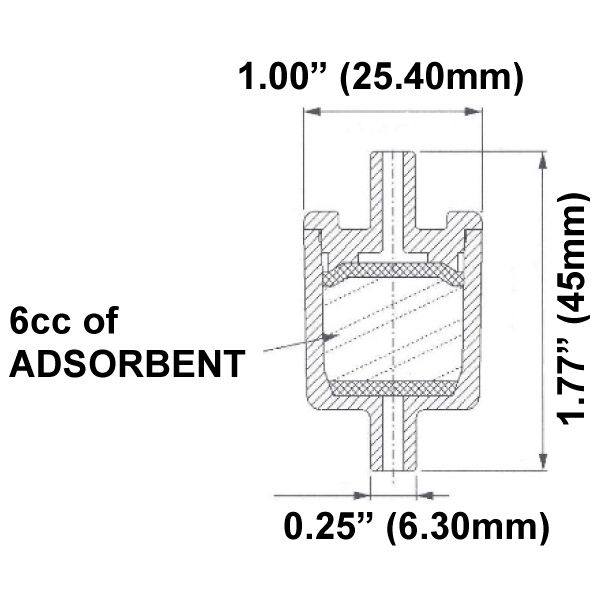

Technical Information
- 1/4" Inlet / Outlet
- 6cc of Volume
- 230ºF Maximum Temp. At 0 PSIG
- 125 PSIG of Maximum Pressure at 110ºF
- 100% Grilamid TR 55 Blue Nylon body
- Specify Absorbent
- Standard Gas Flow at 100 PSIG is 2.1 SCFM
