Description
This series of DIA assemblies is constructed of virgin white kynar for corrosive applications.
Replace “xx” with grade required CC, 4A, 13X, SG, DR, MB, PP, HO, SB, CS, e.g. DIA-BKCC

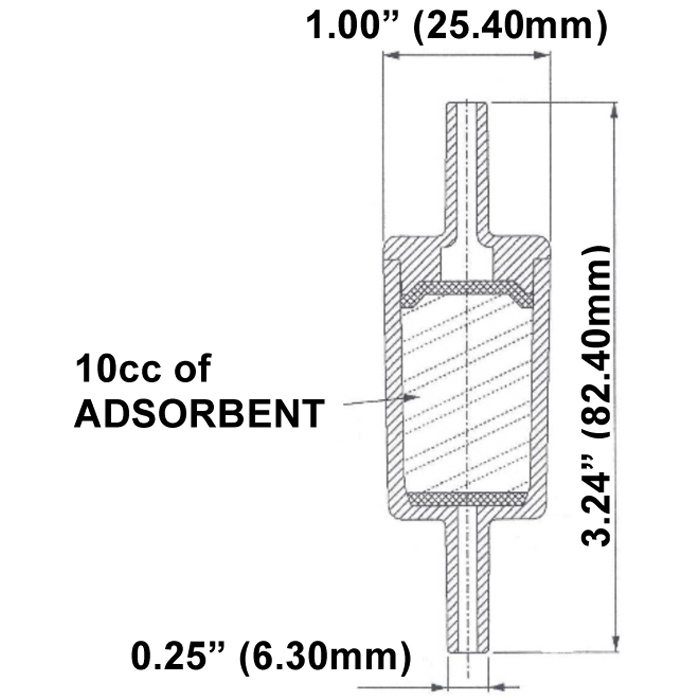

Technical Information
- 1/4" Inlet / Outlet
- 11.5cc of Volume
- 230°F Maximum Temp. At 0 PSIG
- Virgin White Kynar body
- Specify Adsorbent
- Standard Gas Flow at 100 PSIG is 4.2 SCFM
Additional information
| Type of Filtration | Disposable In-Line |
|---|---|
| Connection Size | N/A |
| Drain Type | 1/4" Tube |
| Maximum PSIG | 100 |
| Element Size | N/A |
| Housing Material | White Kynar |
| Media | CC, 4A, 13X, SG, DR, MB, PP, HO, SB, CS |
