| Housing Model | 126 w/ LSS-12-57-100/26G |
|---|---|
| Port Size (NPT) | 1/4" |
| Drain Type (NPT) | No Drain |
| Maximum Pressure (psig) | 5000 |
| Internal Volume (cc) | 30 |
| Weight of Housing (lbs) | 1.0 |
| Principle Dimensions: (inches) | |
| Center of Port to Head | 0.39 |
| Head Diameter | 1.42 |
| Overall Length | 4.21 |
| Element Removal Clearance | 2.36 |
| Maximum Temp. (400ºF) Standard Viton O-Ring | GV110 |
| Filter Element Codes: Stainless Steel Screen Element (Standard - Included) *Other Elements Available-View Drawing* | LSS-12-57-100/26G |
| Drawing **For More Detail & Options** | 126 w/ LSS-12-57-100/26G |
Features
- 316L Stainless Steel Construction
- 5,000 PSIG Rating
- Compact Design
Applications
- Chemical Injection Filter
- Capillary Well Tube Protection
- High Pressure Manifold Filter

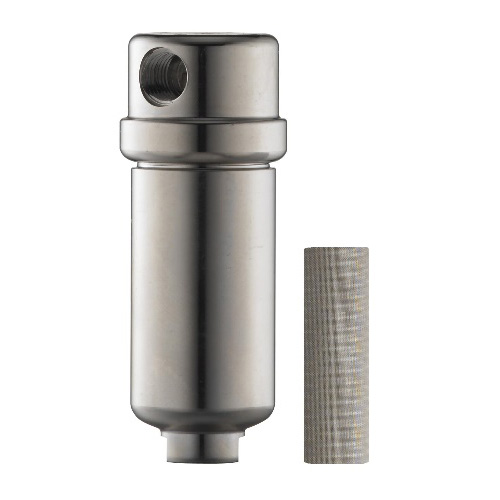

The model 126-LSS-12-57-100/26G is a compact high-pressure filter assembly. The low internal volume provides quick response time and the solid machined SS construction offers an excellent safety rating at high-pressure operation. The two-port design eliminates a potential leak point that a traditional drain plug would exhibit. A captured viton o-ring provides excellent chemical compatibility and positive sealing with every service interval. The 100-micron SS filter screen offers exceptional filtration while still providing high flow rates for such a compact design. The element’s small diameter eliminates the need for a collapse core thus increasing true filtration area and providing longer element life.
